Acctek high quality cnc router machineAKG6090,standard 3axis cnc machine

Short Description:

AccTek high precision wood cnc milling machine AKG6090 3D wood carving machine Product descriotion: 1.The gantry move stable and the ball screw with high precision. 2.Use water-cooling spindle ,suitable for  lots of  material (metal ,non-metal,stone ) The water cooling spindle adopt water cycle to cooling the spindle ,so the cooling effect is very good . Almost no noise, long life. 3.Tool calibration sensor allows easy and accurate “Z” zero position for single and multiple tool changes thro...


  • Control system: Mach3
  • Guide rail: Taiwan HIWIN Square Rail
  • Spindle: 1.5kw Water Cooling Spindle
  • Working area: 600*900*200mm
  • Transmission: Taiwan TBI Ball Screw
  • Inverter: Fuling Inverter
  • Working table: Tslot Table
  • Driver: Leadshine
  • Product Detail

    Product Tags

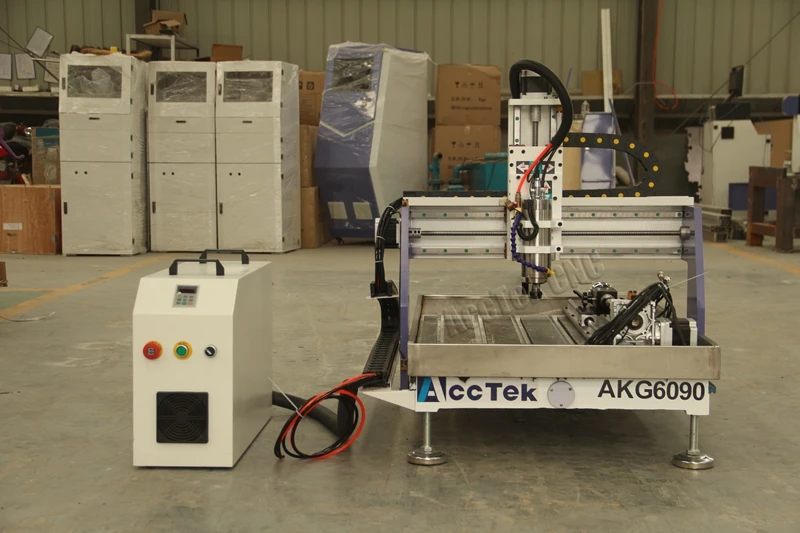

    AccTek high precision wood cnc milling machine AKG6090 3D wood carving machine
    mini cnc router (9).jpg
    Product descriotion:
    1.The gantry move stable and the ball screw with high precision.

    2.Use water-cooling spindle ,suitable for  lots of  material (metal ,non-metal,stone )

    The water cooling spindle adopt water cycle to cooling the spindle ,so the cooling effect is very good . Almost no noise, long life.

    3.Tool calibration sensor allows easy and accurate “Z” zero position for single and multiple tool changes through the program.

    4.Guide rail:We adopt the world famous  rail and guide manufacturer Taiwan Hiwin square rails ,self-lubricating sliding block.

    This ensures equal force in all directions and accuracy and strength of the machine.

    5.Each wire we Acctek have different mark , if the machine goes wrong , You can quickly find the problem.

    6.The control cabinet handle is humanized design . it is convenient for you to move.



    Configuration:

    #AC220V, single phase, 50HZ/60HZ
    #Working area:600*900*200 mm
    #Cast iron body
    #1.5 kw water cooling spindle,0-24000rpm,ER11 collet
    #X/Y/Z axis Taiwan TBI ball screw transmission
    #T slot working table ,with clamps
    #Taiwan 20mm square guide rails
    #Mach3 controller ,Ethernet connection
    # Stepper motor and Leadshine driver
    #Shanghai Fuling inverter
    #Tool sensor
    #French Schneider electronic components
    #Japan Omron limited switch
    #One set of blade tools
    #Standard export plywood package

    Machine details:

    1.5kw water cooling spindle

    mini cnc router (14).jpg

    Control panel

    mini cnc router (2).jpg

    Leadshine drivers and Fuling inverter

    mini cnc router (3).jpg

    Control card

    mini cnc router (4).jpg



    Standard version technical parameters:

    X,Y,Z Working Area 600*900*200mm
    Table Size 1270x870x710 mm
    X,Y,Z Traveling Positioning Accuracy ±0.01/300mm
    X,Y,Z repositioning Accuracy ±0.03mm
    Table Surface T-slot Extrusions
    Frame Cast Steel
    X, Z Structure Ball Screw
    Y Structure Hiwin Rail Linear Bearings and Ball Screw
    Max. Power Consumption (Without spindle) 0.8KW
    Max. Rapid Travel Rate 6000mm/min
    Max. Working Speed 4000mm/min
    Spindle Power Motor 1.5KW / 2.2KW / 3.0KW water or air cooing spindle
    Spindle Speed 0-24000RPM
    Drive Motors Stepper System
    Working Voltage AC220V/50/60Hz
    Command Language G code
    Operating System Mach3 / DSP / NC studio
    Interface USB
    Flash Memory 128M( U Disk)
    Collet ER16
    X,Y Resolution <0.01mm
    Software Compatibility Type3 / Ucancam / Artcam
    Running Environment Temperature: 0°C~45°C
    Relative humidity: 30%~75%





    Options:

    #Easy servo motor

    #3.0kw 4.5kw water cooling spindle can choose

    #water tank

    Samples:

        samples (8).jpgsamples (9).jpg



      sample (13).jpg sample (18).jpg



    FAQ

    1. How long is the delivery time of Acctek CNC machines ?

    For standard machines, it would be 7-14 working days;

    For non-standard machine and customized machines

    according to client s specific requirements, it would be 15 to 30 days.



    2. Do You Arrange Shipment For the machine?

    Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.

    For EXW price, clients need to arrange shipment by themselves or their agents.



    3. Do you provide trade assurance for machines ?

    –We are member of trade assurance.

    You will get

    • Order quality and on-time shipment safeguards

    •100% payment refund up to Trade Assurance Amount: US $718,000



    4, I did not imported before, how should i do ?

    You only need pay to us, we will arrange all the things to you and teach you how to do we will prepare all the documents for you, you don’t need worry, because we know what you need.



    5, How about the documents after shipment?

    We’ll send all original documents to you by DHL, for example: the Packing List, Commercial Invoice, B/L, and other certificates as required by clients.



    6, How about the packing ?

    Free fumigation wooden box

    Our service:

    1.1 year quality guaranty,the machine with main parts(excluding the consumables)shall be changed free of charge if there is any problem during the guaranty period.

    2.Lifetime maintenance free of charge.

    3. Free training course at our plant.

    4. We will provide the consumable parts at an agency price when you need replacement.

    5. 24 hours on line service each day, free technical support.

    6. Machine has been adjusted before delivery.

    7. Our staff can be sent to your company to install or adjust if necessary.
